Take Off

TO NEW HEIGHTS
10 x CLIMATE POSITIVE

The Take Off is the Foiler’s board of choice for anything wing, foil surf, foil downwind and more. This is a true all-round foil board that caters for first-time flyers getting started in foiling all the way through to experienced foilers looking to get high and go fast.

This is a completely new concept through and through with an all-new bottom shape, release edges, rocker, volume and outline. You name it, the 2022 Take Off Foil Board has it.

SMALL SIZE, HIGH VOLUME

Our super small size range with high volume means riders can ride smaller boards than ever before. This new range allows for riders to go down in size by around one foot in length. Smaller size, easier riding in a higher performance package.

NEW BOXY RAIL DESIGN

The rails include a chine design and feature a boxy design toward the top at the standing area. This maximizes the width of the board, making for a more stable and comfortable riding experience.

NEW RAIL EDGE RELEASE

The new rail release revolutionises lift-off. As you pump the board the edge releases for smooth take offs.

NEW CHINE RAILS

The new Chined Rail design ensures a reduced rail area. Especially helpful when turning on the foil, touch downs and ensures the earliest and easiest take offs.

NEW ROUND TAIL DESIGN

After testing a variety of tail designs, we found that this round design gives an easy and smooth sensation during lift off.

NEW TAIL EDGE RELEASE

The sharp tail edge releases when lifting off.

NEW DECK CHANNEL

At the tail, water is funneled out from the board as quickly as possible.

NEW CONCAVE DECK

The low centre of gravity signifficantly improves stability when paddling and foiling and bringing you closer to the foil for the best foiling sensation.

NEW FOOTSTRAP INSERTS

The new 18cm distance between the inserts allows you to have a wider footstrap span for better trim and control while foiling since you can micro-adjust your position.

NEW EXTRA LONG FOOTSTRAP

• A new larger foot strap that has a wider spread and it can also be made shorter, using different positions, for those who want the security necessary to launch into the air.

• Our new XL footstraps come with Blue Carbon Pro and Blue Carbon. It can also be purchased aftermarket for Lite Tech.

NEW 12” FOIL BOX

The brand new 12” foil box gives more options to more riders. Move the foil to your preferred liking. Further forward suits riders starting to foil who may need extra lift. Further back on the box is for high wind conditions, large waves and highly skilled riders. All boards are optimised so the middle box position gives the best balance point for foilers.

NEW FLAT FOIL AREA

The Flat foil area is designed to keep the foil in the ideal angle at all times, no matter where the foil is placed.

NEW SELF-VENTILATING VALVE

A self-ventilating air valve is available on the board. This valve is self-ventilating so, it should not be touched or removed – otherwise, you are at risk of damaging the valve system.

Constructions

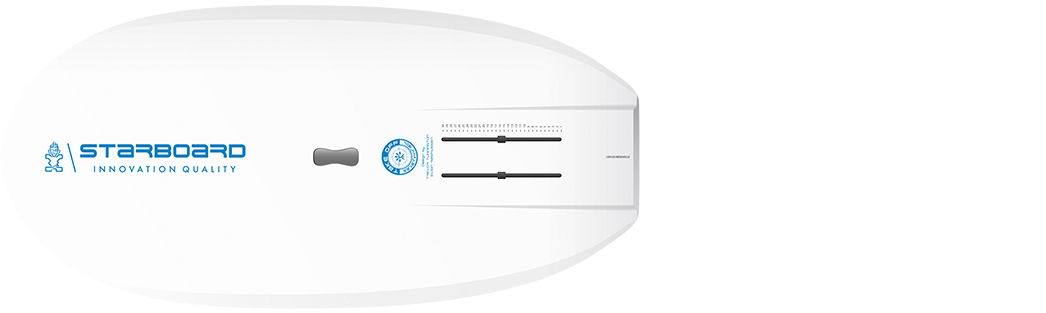

Swipe over the board to see bottom view

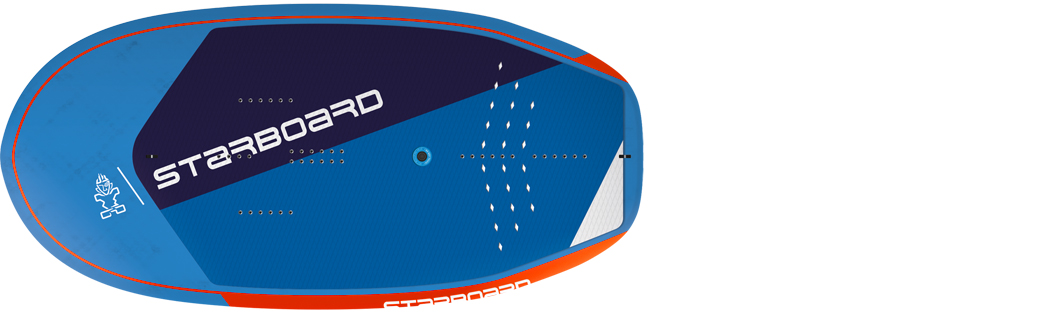

BLUE CARBON PRO

LIGHTEST AND STRONGEST

• Based on the world proven and award-winning Carbon Sandwich construction, the Blue Carbon Pro features a full PVC wrap and the lightest 100g biaxial carbon fiber in the market.

• Highest grade 100g biax carbon wraps the full deck, rail and bottom.

• Thin high-density PVC wraps the entire board with an extra-strong PET standing reinforcement reduces resin uptake and increases the overall strength.

• The sensational lightweight increases carving ability and acceleration.

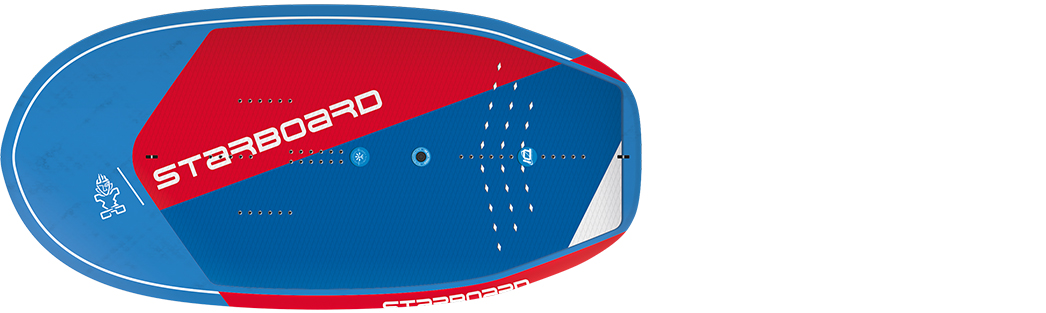

BLUE CARBON

THE BEST VALUE FULL CARBON CONSTRUCTION WE HAVE EVER PRODUCED

• Top grade 150g Biaxial Carbon wraps the entire board, joining with an overlap on the deck and bottom to create flat stringer, increasing the total breakage strength.

• 2 skins of durable fibre glass form a sandwich around the biaxial Carbon, protecting the carbon by dampening and absorbing the impact.

• The combination of twin T-stringers deck and bottom work together to increase the overall total breakage strength.

• Multiple reinforcements in the standing area, nose and tail increase impact resistance.

LITE TECH

LIGHT, STRONG, AFFORDABLE

• Extra rigidity with the introduction of unidirectional stringer bands and solid with added rail / nose reinforcements.

• Australian pine on the standing area for extra impact resistance and rigidity in the most critical area.

• Comes with shoulder carry strap inserts. Starboard shoulder carry strap can be purchased after market.

• All inserts have added high-density foam reinforcements.

WHAT'S IN THE BOX?

What’s included varies between board models & constructions

FAQ's

Got a question about this model? See the FAQ’s to learn more

Available Sizes

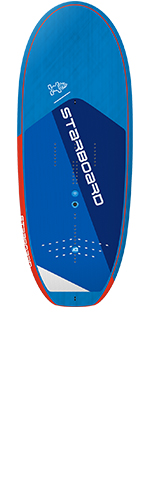

NEW 7’1” x 32” / 150 L

Length: 7’1” / 216 cm

Width: 32” / 81 cm

The 7’1” x 32” is not to be underestimated. It has one of the fastest take off speeds in the range and is manoeuvrable and stable enough for most paddlers to enjoy! Fast take off, manoeuvrable, perfect for learning.

Available constructions:

• Blue Carbon Pro

• Blue Carbon

• Lite Tech

NEW 6’4” x 31” / 130 L

Length: 6’4” / 196 cm

Width: 31” / 79 cm

Taking off has never been faster in a board this wide. The 6’4” is the perfect board to take your foiling to the next level! The 6’4 offers stability and 130 L of volume in a manoeuvrable size.

Available constructions:

• Blue Carbon Pro

• Blue Carbon

• Lite Tech

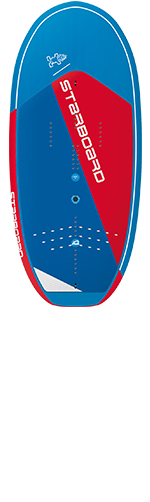

NEW 5’7” x 29” / 110 L

Length: 5’7” / 170 cm

Width: 29” / 74 cm

Yes! Now you can ride the ultimate small package with the 5’7” x 29”. Built for riders looking to up their game in wing, SUP surf foil and down winding in a super small and stable size.

Available construction:

• Blue Carbon Pro

• Blue Carbon

• Lite Tech

NEW 5’3” x 30” / 115 L

Length: 5’3” / 160 cm

Width: 30” / 76 cm

Larger riders can enjoy SUP foil surfing, SUP Foil downwind and Wingboarding all in one ultra-short and stable design. Offering high-performance riding to riders up to 95kg in Foil paddling and 105kg riders in Wingfoiling.

Available constructions:

• Blue Carbon Pro

• Blue Carbon

• Lite Tech

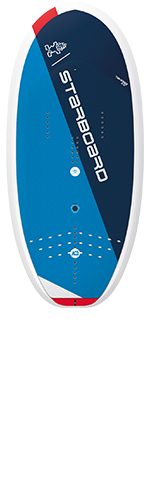

NEW 5’2” x 27” / 90 L

Length: 5’2” / 158 cm

Width: 27” / 69 cm

The 5’2” Take Off is an advanced rider’s all round foil board of choice. The 5’2” is a compact design with 90L of volume to cater for downwind foiling, SUP wave foiling and wing foiling.

Available constructions:

• Blue Carbon Pro

• Blue Carbon

• Lite Tech

NEW 4’7” x 24” / 70 L

Length: 4’7” / 140 cm

Width: 24” / 61 cm

The 4’7” Take off is our most compact and high-performance offering for the Take Off range. Built for high-performance wing boarding and Sup foiling. The 4’7” Take Off is the ultimate, ultra manoeuvrable board for advanced riders.

Available constructions:

• Blue Carbon Pro

• Blue Carbon

• Lite Tech

← Scroll sideways for more sizes →

Model7'1" x 32"6'4" x 31"5'7" x 29"5'3" x 30"5'2" x 27"4'7" x 24"
Rider WeightSUP Foil: 120 kg
Wing Foil: 140 kg
SUP Foil: 110 kg
Wing Foil: 120 kg
SUP Foil: 95 kg
Wing Foil: 105 kg
SUP Foil: 95 kg
Wing Foil: 105 kg
SUP Foil: 85 kg
Wing Foil: 95 kg
SUP Foil: 65 kg
Wing Foil: 85 kg
Length7'1" / 215.9 cm6'4" / 193 cm5'7" / 170.2 cm5'3" / 160 cm5'2" / 157.5 cm4'7" / 139.7 cm
Width31" / 78.7 cm32" / 81.3 cm31" / 78.7 cm29" / 73.7cm27" / 68.6 cm24" / 61 cm
Thickness4.2" / 10.7 cm4" / 10.2 cm4" / 10.2 cm4.9" / 12.5 cm4.4" / 11.2 cm4" / 10.2 cm
Tail Width21.7” / 55 cm22.8” / 57.9 cm24.9" / 63.2 cm25.7" / 65.2 cm25.8" / 65.5 cm26” / 66 cm
Volume150 L130 L110 L115 L90 L70 L
Fin Set UpUS Box 12"US Box 12"US Box 12"US Box 12"US Box 12"US Box 12"
WeightBLUE CARBON PRO: 8.6 kg (est)
BLUE CARBON: 8.9 kg (est)
LITE TECH: 10.5 kg (est)
BLUE CARBON PRO: 7.6 kg (est)
BLUE CARBON: 8.0 kg (est)
LITE TECH: 9.5 kg (est)
BLUE CARBON PRO: 6.7 kg (est)
BLUE CARBON: 7.2 kg (est)
LITE TECH: 8.4 kg (est)
BLUE CARBON PRO: 6.9 kg (est)
BLUE CARBON: 7.5 kg (est)
LITE TECH: 8.5 kg (est)
BLUE CARBON PRO: 6.0 kg (est)
BLUE CARBON: 6.3 kg (est)
LITE TECH: 7.4 kg (est)
BLUE CARBON PRO: 5.3 kg (est)
BLUE CARBON: 5.7 kg (est)
LITE TECH: 6.4 kg (est)

Board weight tolerance:

Blue Carbon Pro +/- 5% , Blue Carbon +/- 5% , Lite Tech +/- 6%
